Standard FCC Version

CC2500 (FCC) Version supports all CC2500 protocols

4in1 (FCC) Version supports all MPM protocols

ELRS (FCC) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependant)

Features

·      Available with built-in ExpressLRS or 4-in-1/CC2500 MPM RF modules

·      Featuring a powerful STM32VGT6 processor with 1MB RAM

·      Preinstalled EdgeTX firmware

·      Internal ELRS module capable of 1,000Hz refresh rate

·      Adjustable ELRS RF output (30dBm max FCC or 20dBm Max EU LBT)

·      4-in-1 or CC2500 only version capable of up to 20dBm RF output

·      QC3.0 fast charging support 2.0A MAX

·      Compact design with excellent ergonomics

·      New low-profile latching SE switch and momentary SF switch

·      Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)

·      Full sized V4.0 Hall effect gimbals as standard, upgradable to AG01 CNC Hall effect gimbals

·      Standard JR module compartment

·      Internal module cooling fan built in (ELRS version)

·      RadioMaster standardized button layout

·      Versatile 6-position switch for flight mode access

·      Adjustable and Removable T-shape Antenna

·      Industry first fabric handle for improved portability

·      Changeable, ergonomic grips

·      Redesigned SD card slot with pre-loaded SD card included

·      External module power slots in battery cover

·      RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move

Specification

·      Item: BOXER Radio

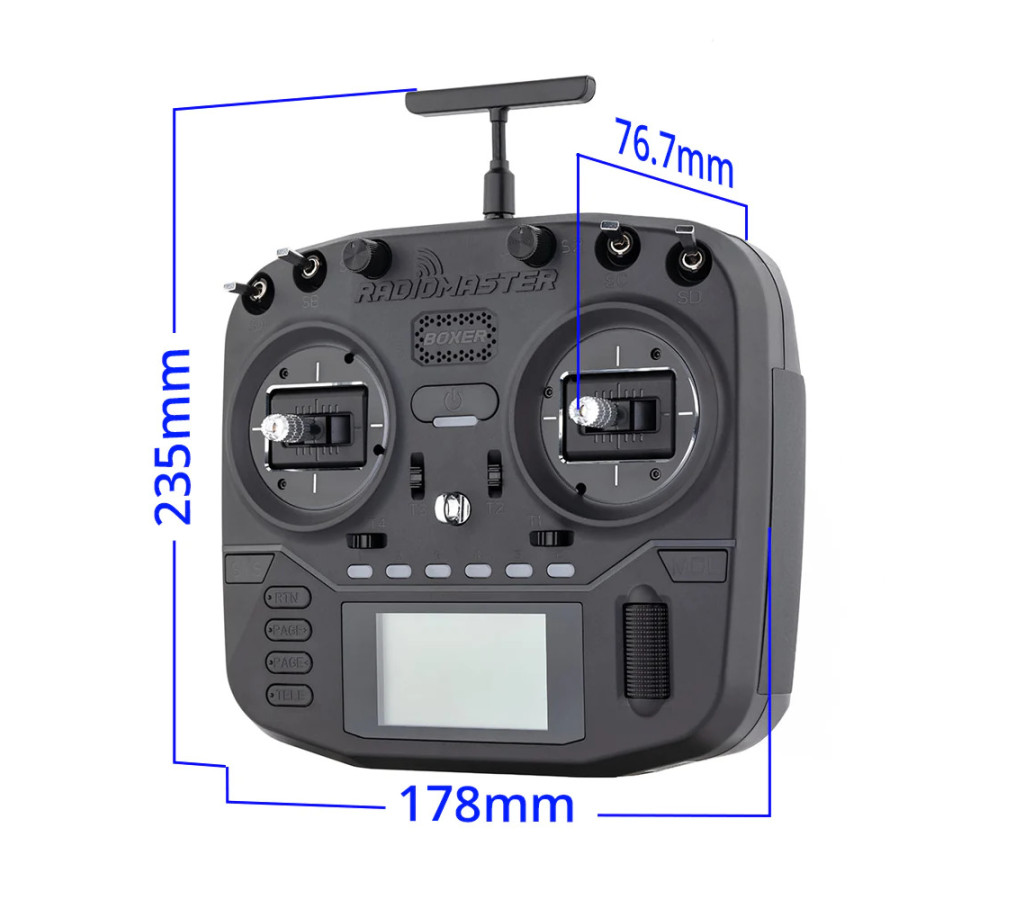

·      Size: 235*178*77mm

·      Weight: 532.5g

·      Frequency: 2.400GHz-2.480GHz

·      Internal RF Options: CC2500 multi-protocol / 4-in-1 multi-protocol / ELRS 2.4GHz

·      Supported protocols: Module dependent

·      Transmitting Power CC2500 and 4IN1: Max 20dBm

·      Transmitting Power ExpressLRS: Max 30dBm (international) / Max 20dBm (EU LBT)

·      Cooling fan: Built in (ELRS version)

·      Voltage Range: 6.6-8.4V DC

·      Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) / ELRS

·      Channels: Max 16 channels (Receiver dependent)

·      Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)

·      Display: 128*64 Monochrome LCD display

·      Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)

·      External module: JR/FrSKY/Crossfire compatible

·      Upgrade Method: USB/SD card & EdgeTX Companion PC software

Package Includes

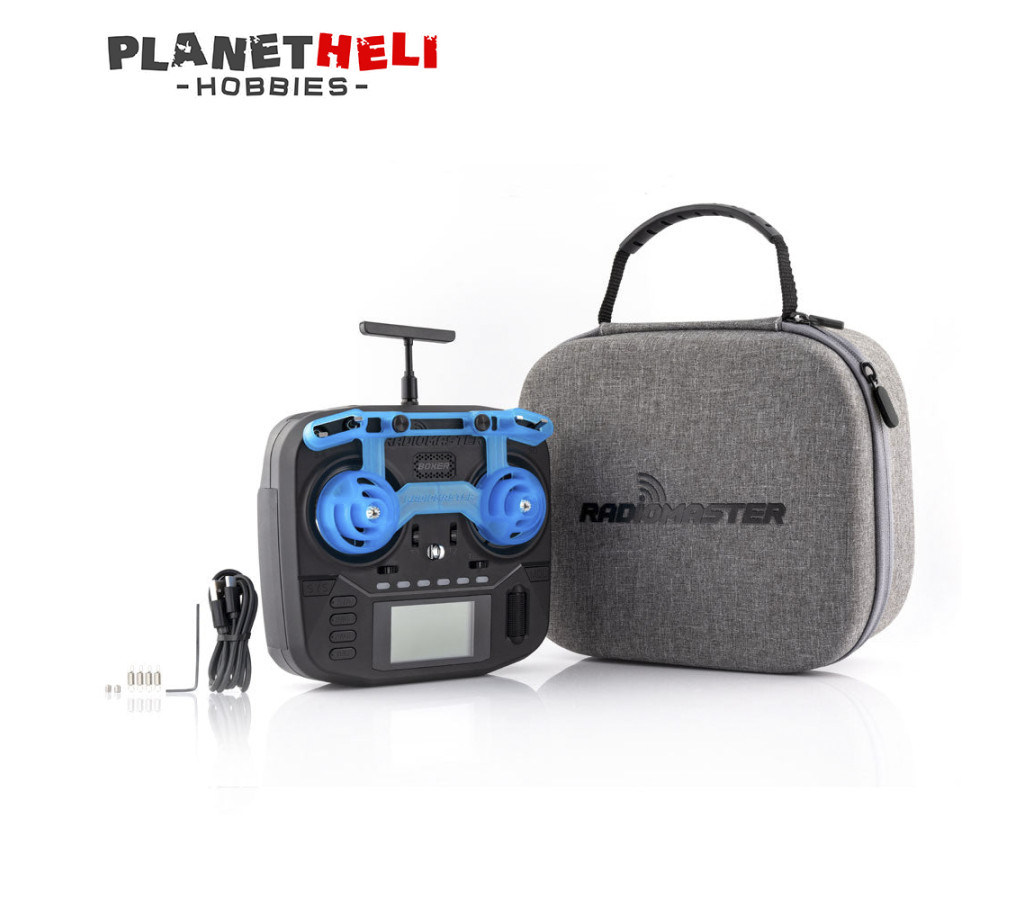

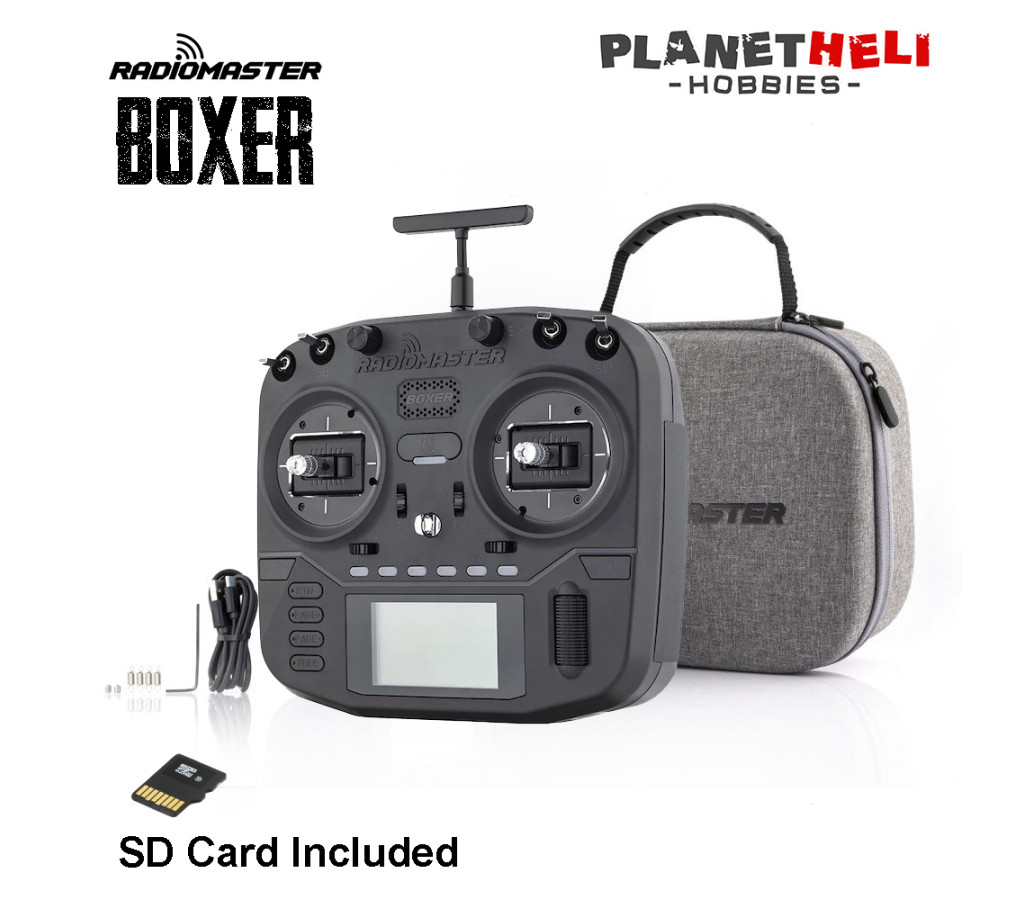

·      1 * BOXER Radio

·      1 * Signature Carry Case

·      1 * T Antenna

·      1 * USB-C Cable

·      1 * Gimbal Protector

·      1 * 1.5mm Allen Key

·      2 * M4*4 Screws

·      4 * Low Tension Springs

·      1 * 18650 Battery Tray

·      1 * Stickers

·      1 * Manual
