Features

• Extreme Torque and Excellent Speed
• CNC Aluminium Case
• Brushless DC Motor
• Dual Ball Bearings
• Ideal for Heli 550-700

Specification

• Item: BLS805X HV Brushless Tail Servo
• Operating Voltage: DC6.0V-8.4V

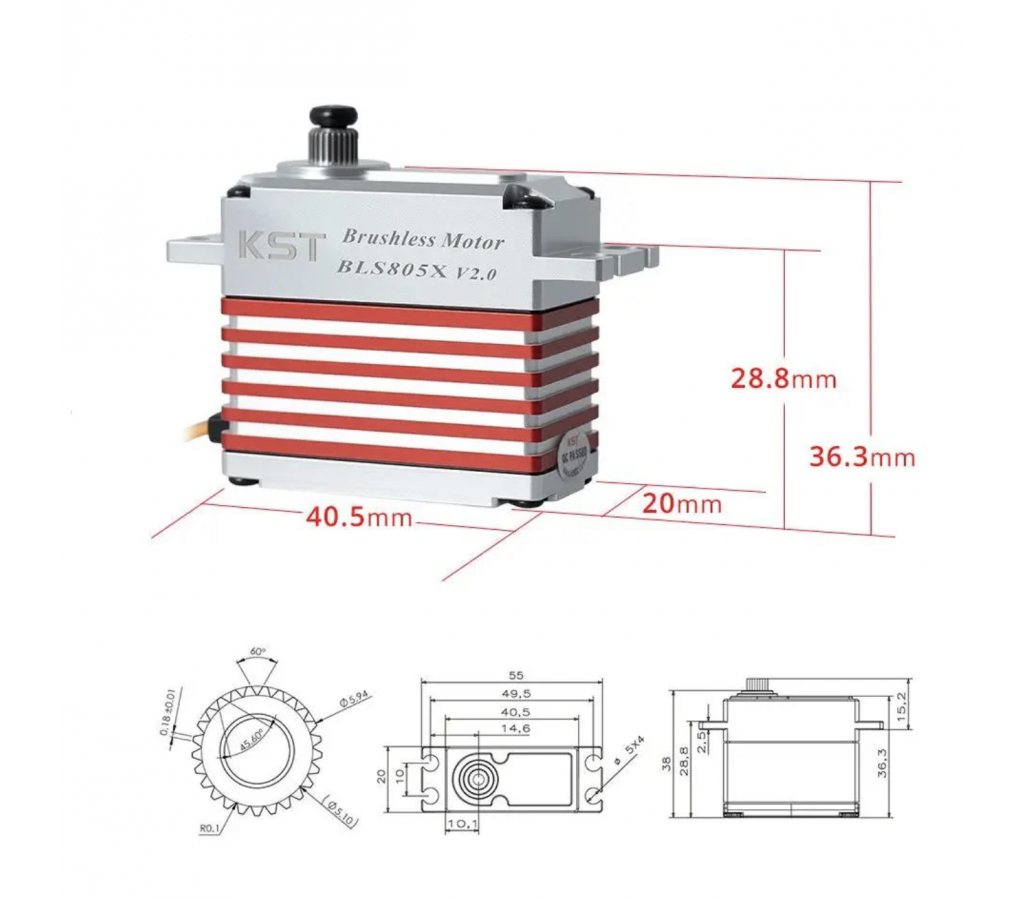

• Dimension : 40.5mm*20mm*38mm±0.2mm
• Torque: 5.5Kgf.cm@6.0V,  6.5Kgf.cm@7 .4V,  7. 5Kgf.cm@8.4V
• Speed: 0.048sec/60° @6.0V,   0.042sec/60°@7.4V,   0.039sec/60°@8.4V
• Temperature Range: -10℃……+65℃
• Weight: 70g±10%
• Working Frequency: 760μs/560Hz
• Case Material: Aluminum Alloy
• Motor Type: Brushless DC Motor
• Position Sensor: Potentiometer
• Ball Bearing: 2BB
