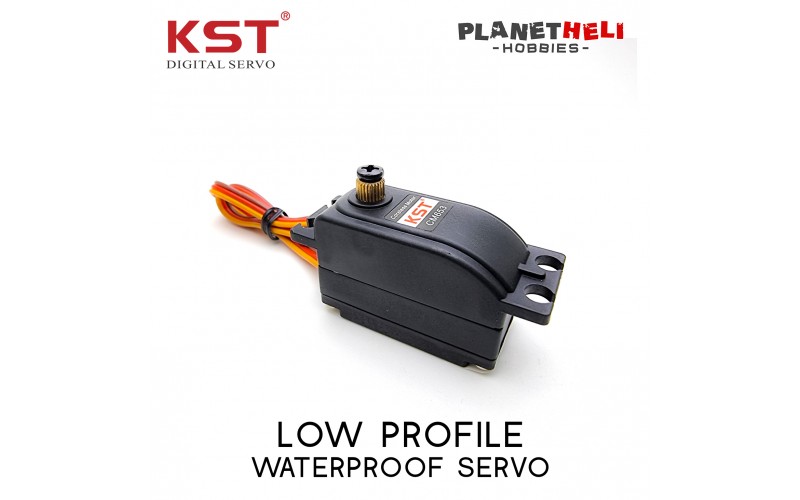

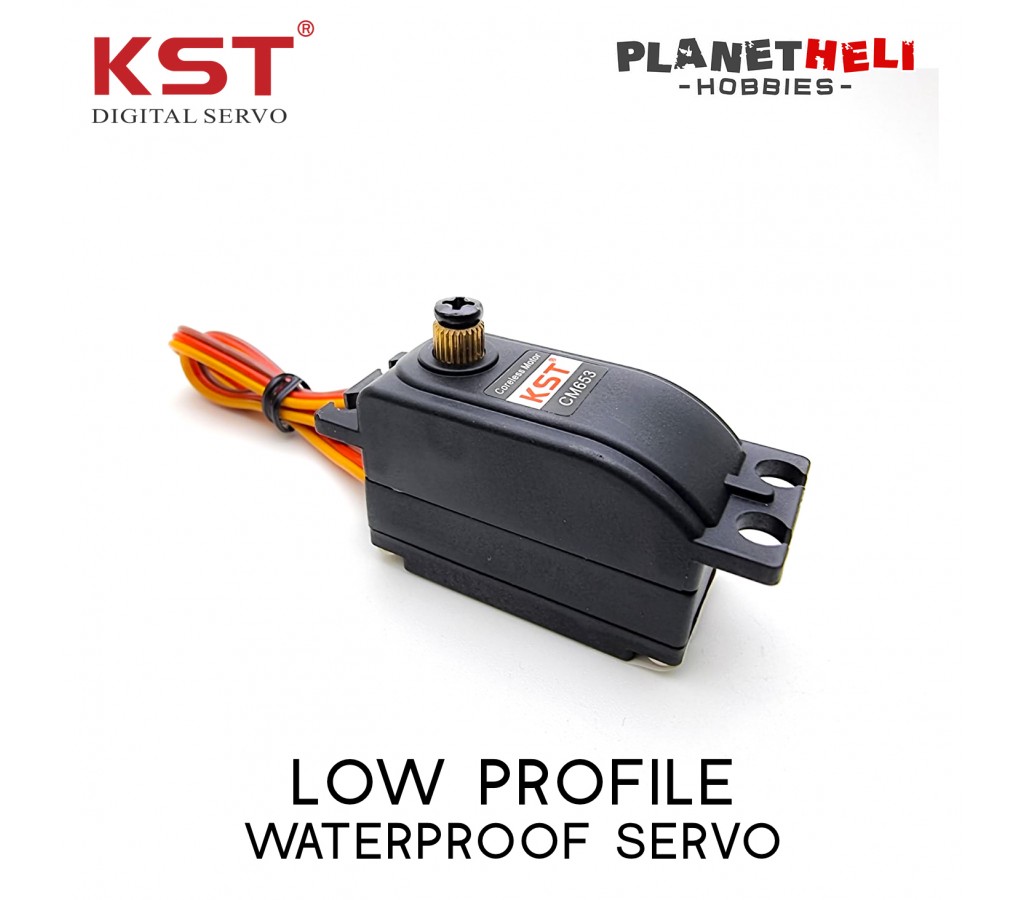

CM653 Low Profile servo offers fast response, high efficiency, ultra-high torque, excellent speed and IP65 splash-proof. Perfect for 1/10th scale trucks, rock crawlers, drift & touring cars.

Features

• Low Profile Servo with fast response and high efficiency

• Ultra-high torque & Excellent speed

• IP65 splash-proof

• Double ball bearings

• Coreless DC Motor

• Metal Gear

• Programing box/USB link compatible

• Ideal for 1/10 RC Drifting Car & RC Touring Car

Specification

Item: CM653 Low Profile Servos

Rated Voltag: DC7.4V

Voltage Range: DC4.8V-8.4V

Torque:

• 10Kgf.cm@4.8V

• 12Kgf.cm@6.0V

• 15Kgf.cm@7.4V

• 18Kgf.cm@8.4V

Speed:

• 0.12sec/60°@4.8V

• 0.10sec/60°@6.0V

• 0.09sec/60°@7.4V

• 0.08sec/60°@8.4V

Stall Current:

• 2.60A@4.8V

• 3.20A@6.0V

• 3.60A@7.4V

• 4.05A@8.4V

Working Frequency: 1520us/333Hz

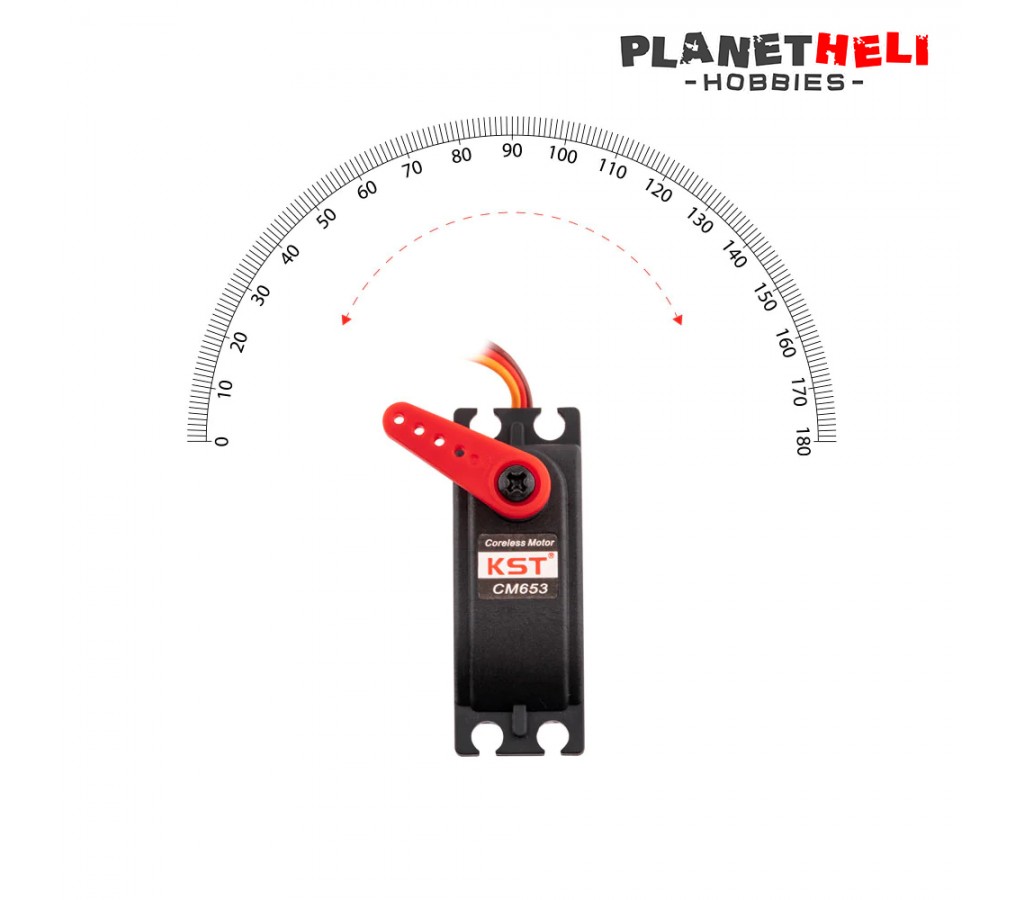

Default Travel Angle: ±50° =100° Total

Temperature Range: -10℃……+65℃

Soft Start: Programmable

Programmable: Yes

Motor Type: Coreless DC Motor

Gear Set Material: Metal Gear

Position Sensor: Potentiometer

Ball Bearing: 2BB

Waterproof: IP65

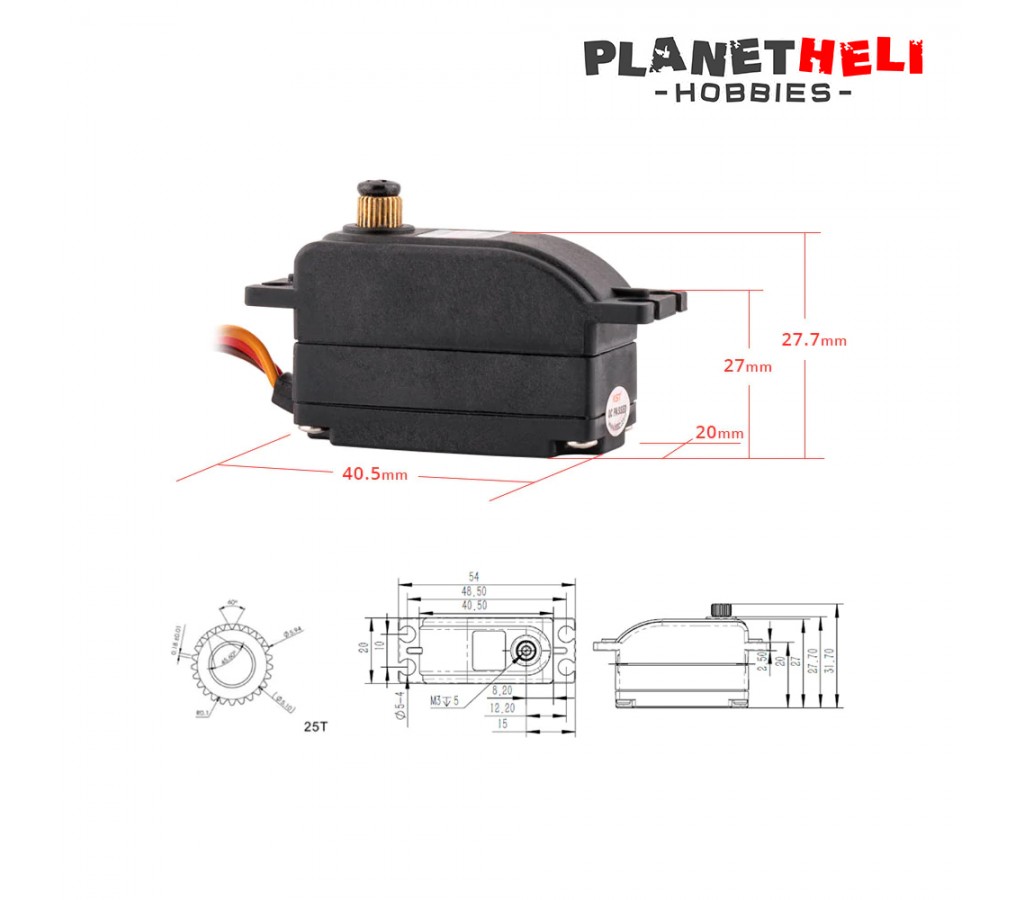

Case Dimensions: 40.5*20*27.5±0.2mm

Weight: 43g±10%
