Features

• Improved PCB design is better for heat dissipation.
• Upgraded rigid antenna with greater durability and performance.
• LED on the top side of PCB.
• Solder pads are improved and easier to solder to.
• Built-in a TCXO (temperature compensated crystal oscillator)


Specification

• Item: RP1 Nano ExpressLRS 2.4ghz Receiver
• Type: ISM

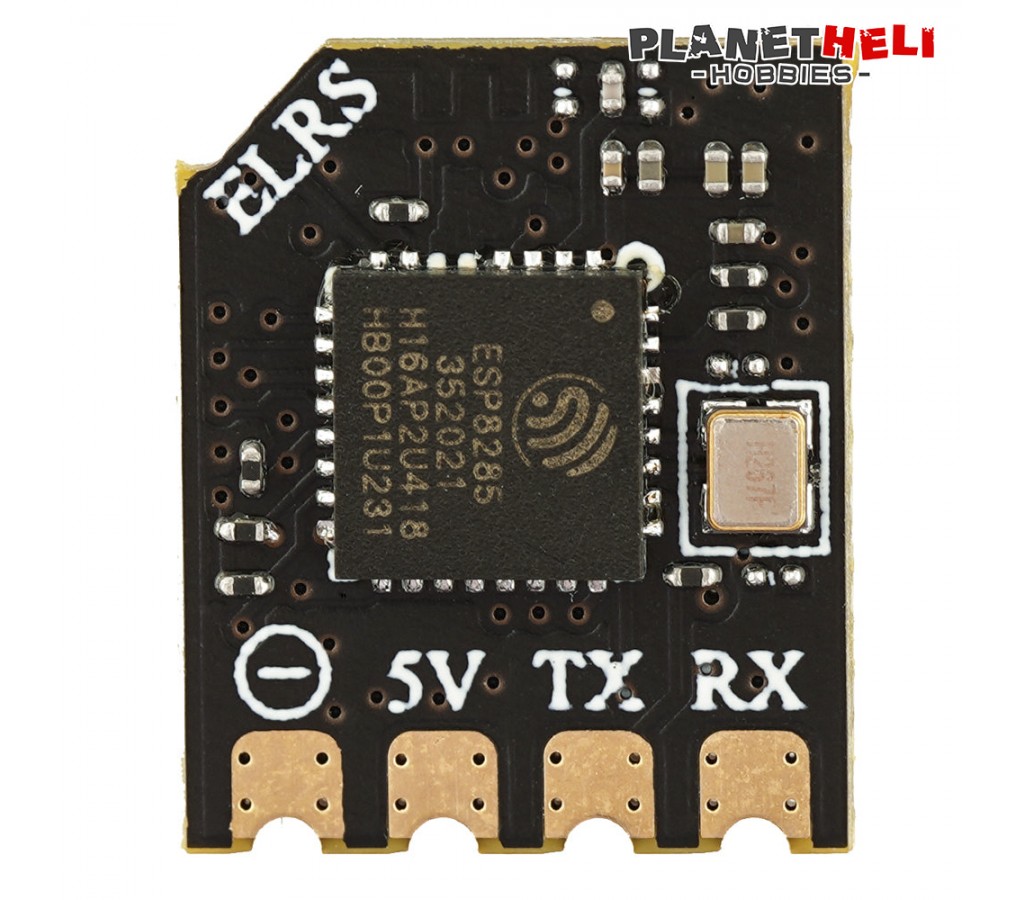

• MCU: EPS8285

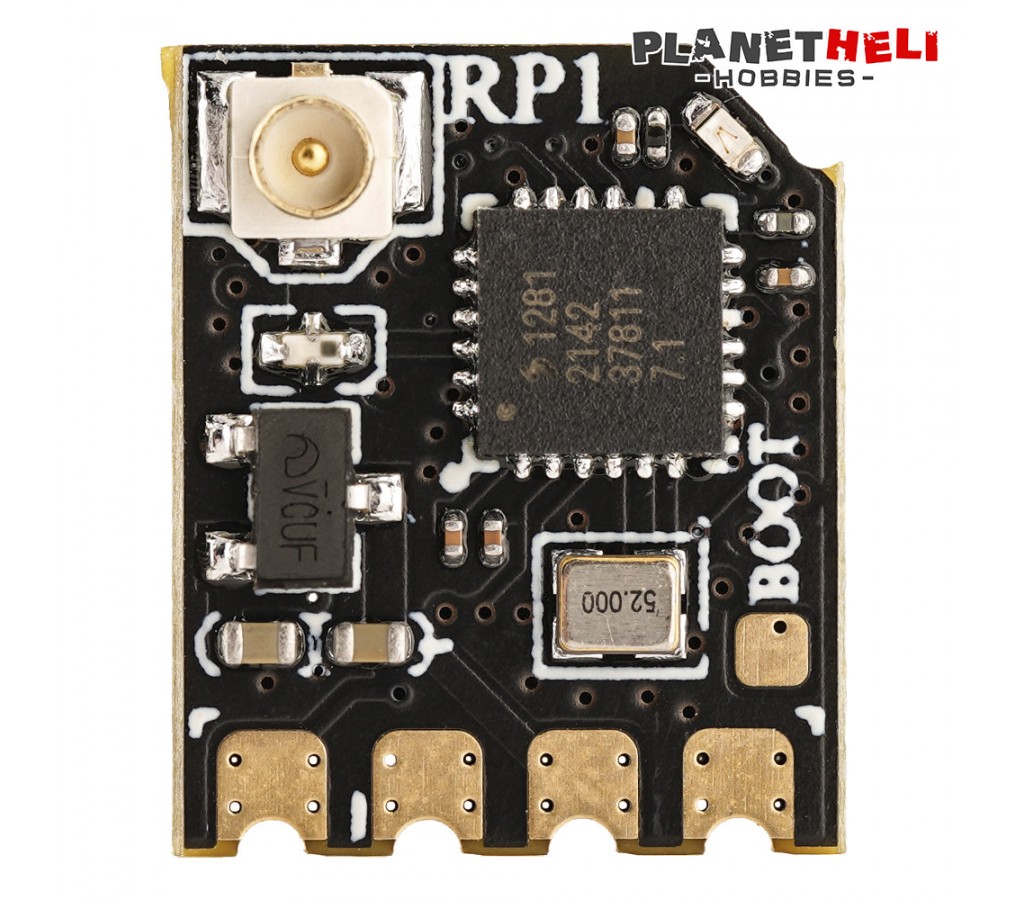

• RF Chip: SEMTECH SX1281
• Telemetry RF power: 10mW
• Antenna: 65mm 2.4ghz T Antenna
• Frequency Range: 2.404 - 2.479 Ghz
• Maximum receive refresh rate: 500Hz / F1000Hz
• Minimum receiver refresh rate: 25Hz
• Working voltage: 5v

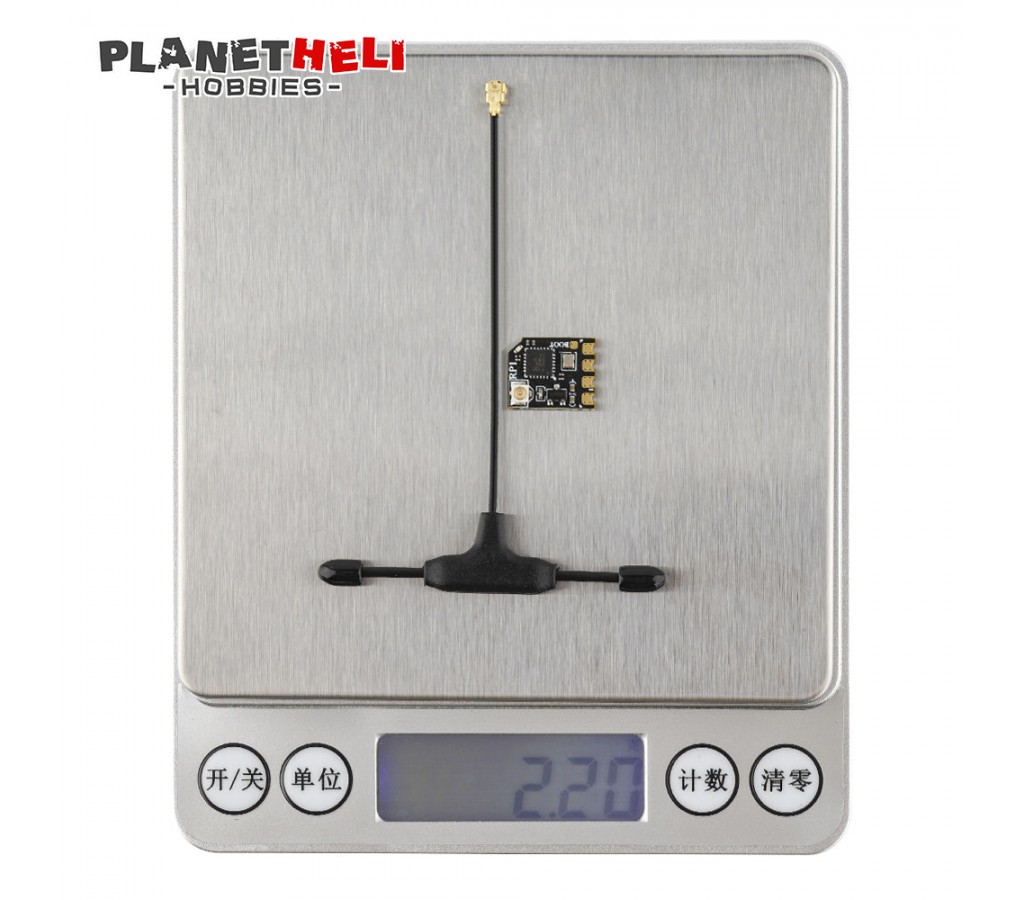

• Weight: 2.2g (Including antenna)
• Dimension: 13mm*11mm*3mm
• Firmware Version: ExpressLRS v2.4 pre-installed
• FW Target: RadioMaster RP1/2 2400 RX
• Bus interface: CRSF

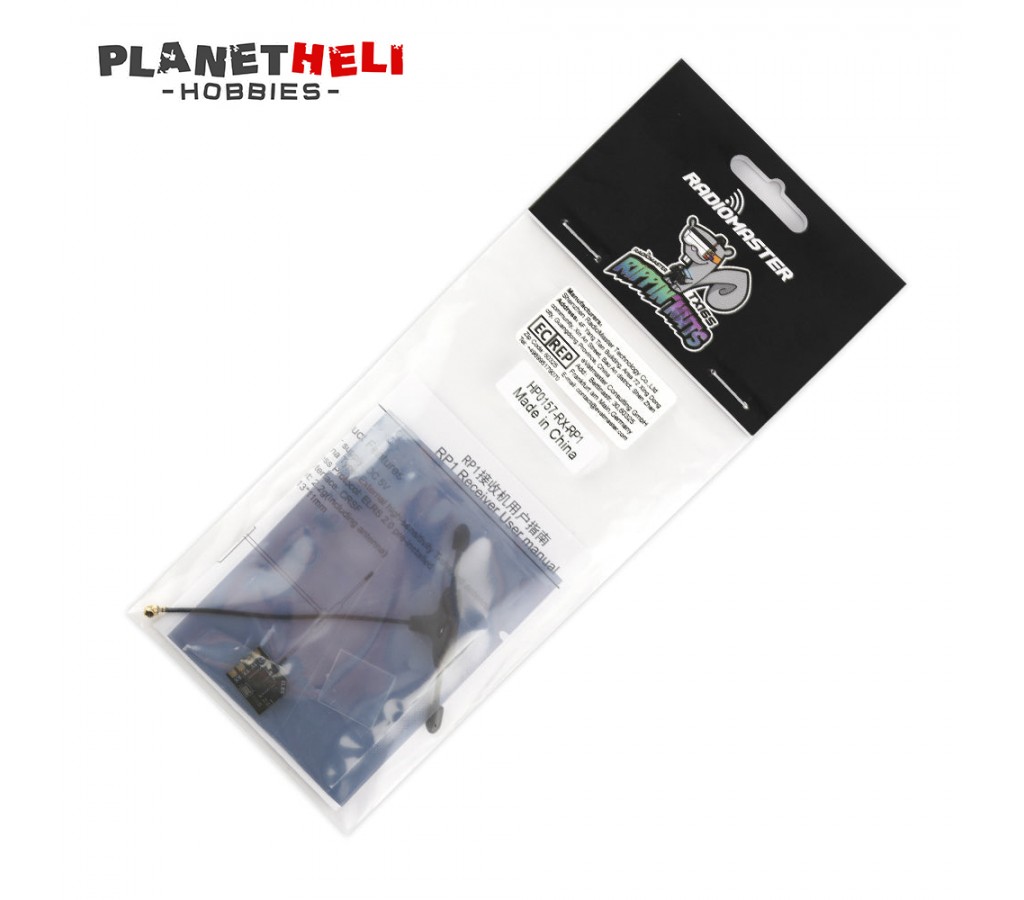

Package Includes

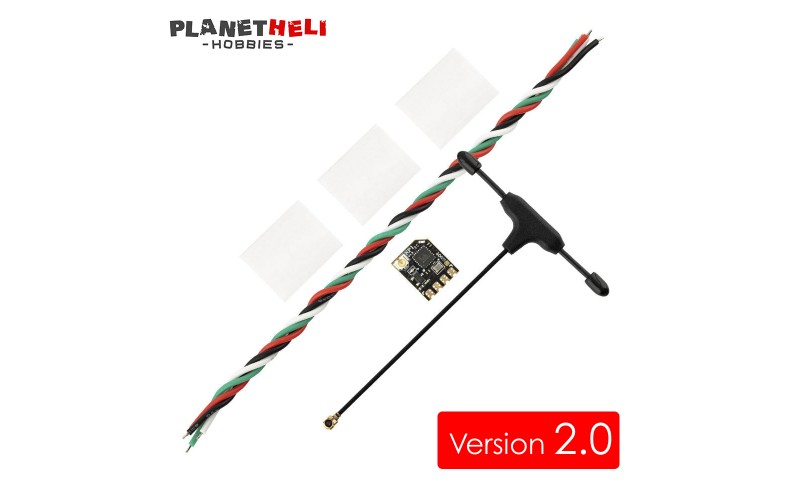

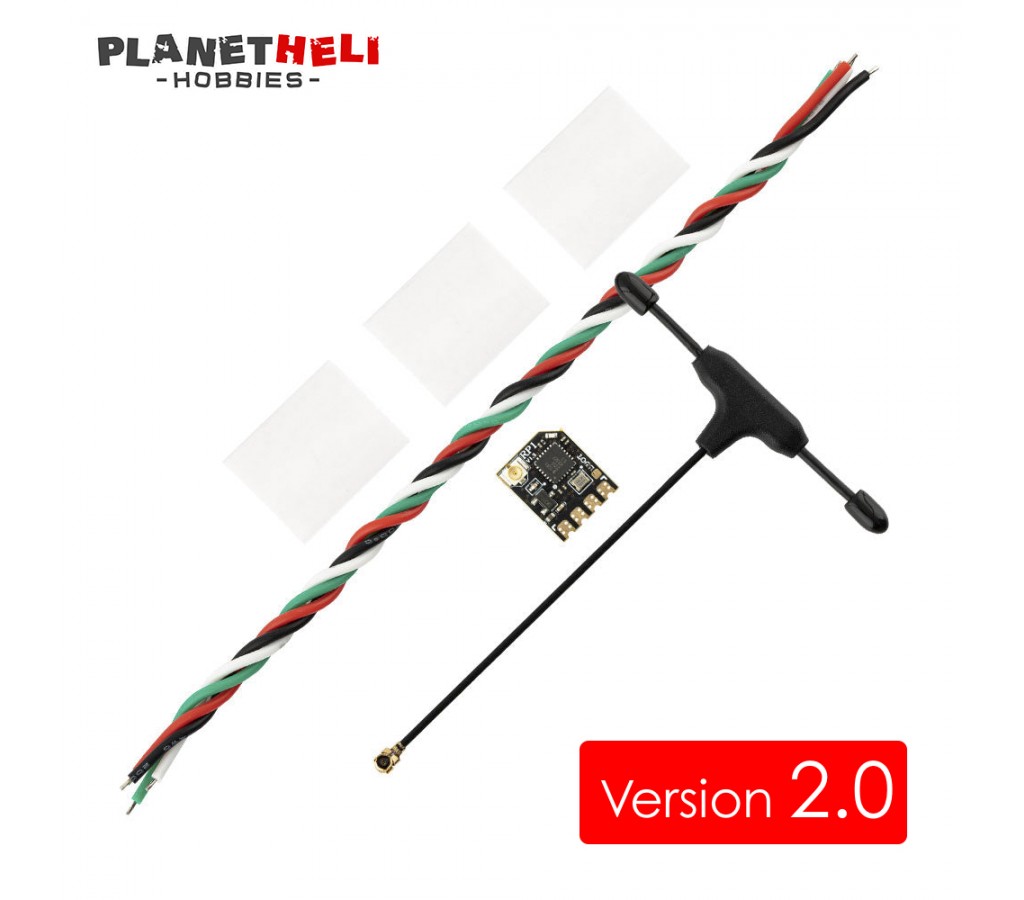

• 1 * RP1 ExpressLRS 2.4ghz Nano Receiver
• 1 * 65mm UFL 2.4Ghz T Antenna
• 1 * User Manual
• 1 * CRSF wire
