Specification

·      Item: RP3 Diversity Receiver

·      Type: ISM

·      MCU: ESP8285

·      RF Chip: SX1280IMLTRT

·      Telemetry RF power: max 100mw

·      Antenna: 65mm 2.4ghz T Antenna x 2

·      Frequency Range: 2400 MHz to 2480 MHz

·      Maximum receive refresh rate: 500Hz / F1000Hz

·      Minimum receiver refresh rate: 25Hz

·      Working voltage: 5v

·      Weight: 4.6g (Including two antenna)

·      Dimension: 22mm*13mm*4mm

·      Firmware Version: ExpressLRS v3.0 pre-installed

·      FW Target: RadioMaster RP3 Diversity 2400 RX

·      Bus interface: CRSF

Package Includes

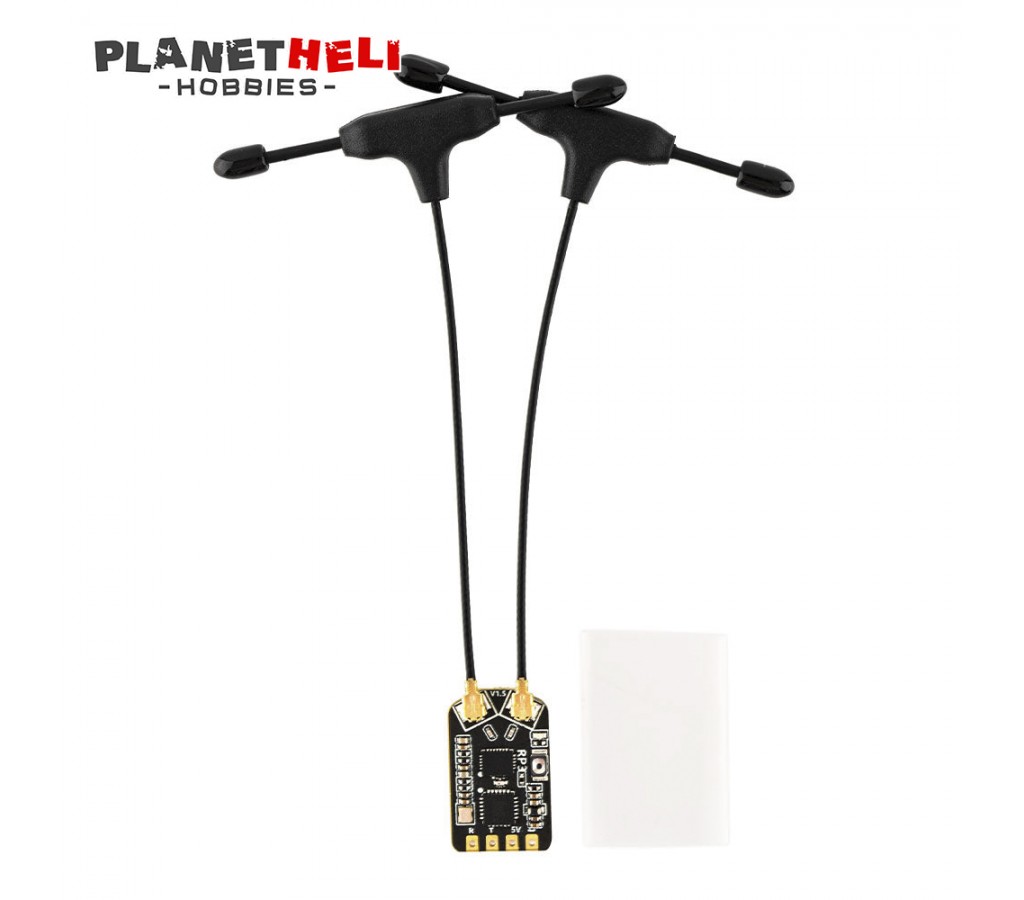

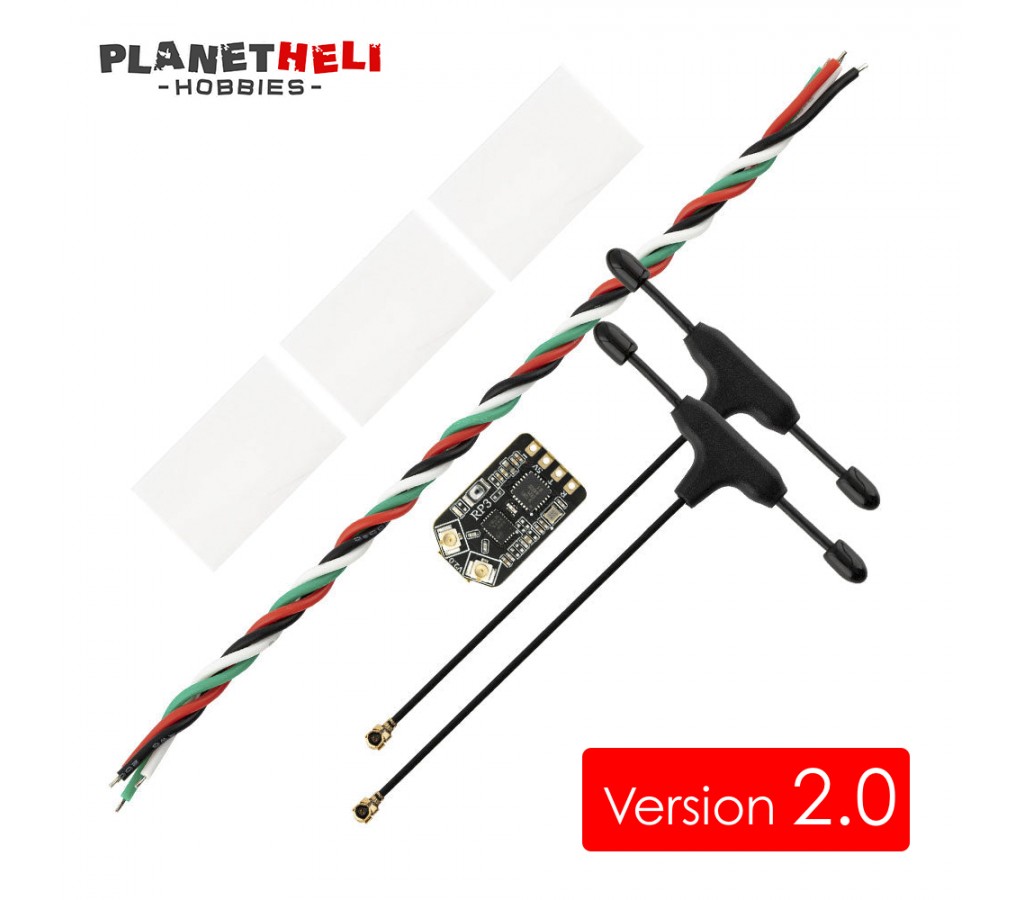

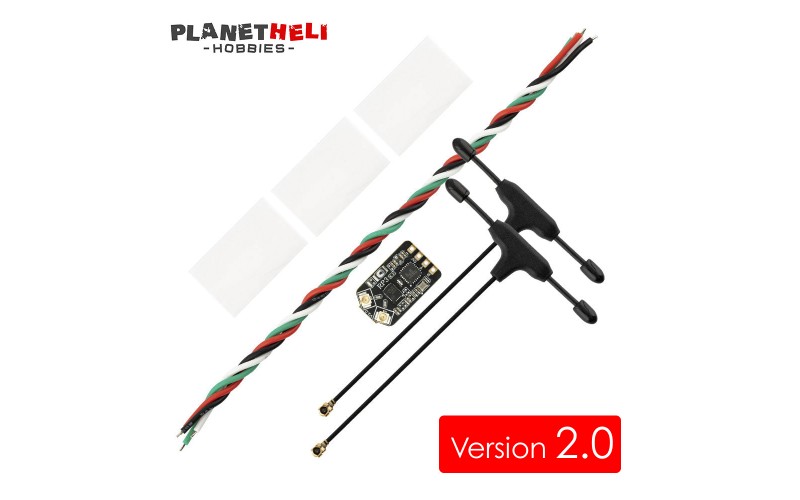

• 1 * RP3 ExpressLRS 2.4ghz Nano Receiver
• 2 * 65mm UFL 2.4Ghz T Antenna
• 1 * User Manual
• 1 * CRSF wire
