Following the revolutionary Kraken 700, now SAB impress the world again with a smaller and compact version - here is the KRAKEN 580!
Introducing the all new Kraken 580... an incredible machine with super strong drive train enclose in an aluminum case. Its innovative body and boom design creates an amazing fuselage styling.. An unique machine once again!
This new Kraken 580 pioneers innovation in mid-size helicopters, raising the bar on design, flight performance and technological advancement that will overwhelm you with excitement and exhilaration.
You will never be more proud to own such a beautiful, unique and power machine that motivates you to fly again and again to become a better pilot. It will give you pride of owning something special like no other - the Kraken 580!
Key Features
- Employs the same design concept from the Kraken 700;

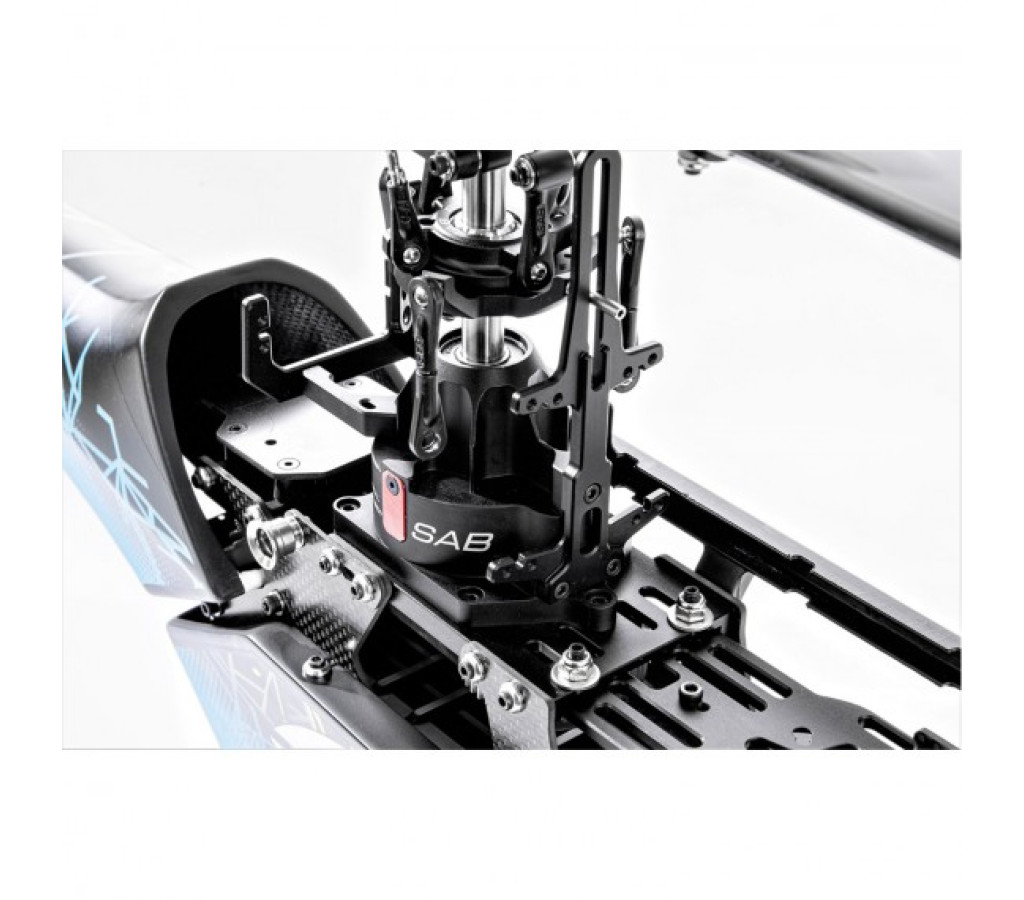

- Incredible strong drive train enclosed in a durable aluminum casing;
- Ultra light weight and rigid 7075 aluminum alloy highly adjustable rotor head and simple tail group;
- Body and boom design with integrated frames, to create an amazing fuselage style;
- Boom detachment system for improve crash durability;
- Standard with 570mm blades, main blades can be up to 600mm.
General Specifications:
- Main rotor diameter: 1270mm with 570mm size main blades;
- Main blades length: 570mm;

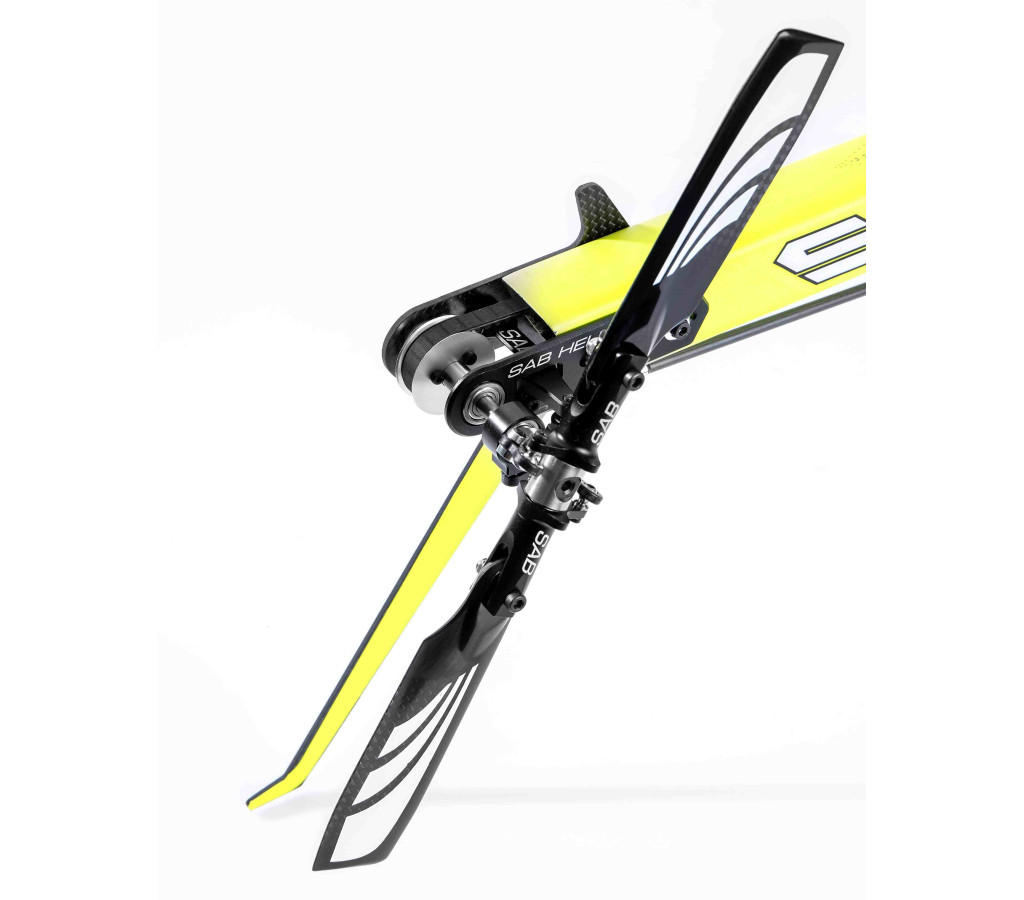

- Tail rotor diameter: 260mm with 95mm size tail blades;
- Tail blade length: 95mm;
- Air frame weight: 1760 grams (with blades, no electronics and batteries).
Electronic Specifications:
- Cyclic servos: Mini size (torque over 8kg-cm; Optional Standard size servo mount available);
- Tail servo: Standard size (40mm);
- Main Ratio: 11.5 - 8.6:1 (22T motor pulley included, 9.4:1)
- Tail Ratio: 5.3 - 4.9:1 (23T tail pulley included, 4.9:1)
- Typical ESC setup: 6S 120-140A, 12S 100-130A;
- Typical motor setup: 4025 series, 6S 1000-1200KV, 12S 500-600KV; Min. 26mm motor shaft length, 6mm shaft recommended;
- Motor size: Maximum 54mm in diameter, maximum 64mm in height;
- Battery compartment: 6S 5000/5800mAh, 12S 2600/3200mAh; suggest battery weight between 850 - 1050 grams.
Kit includes:
- Motor pulley 22T;
- 1 set of battery trays;
- 1 set of 570mm main blades;
- 1 set of 95mm tail blades.
Following motor pulleys are available:
- 18T Pulley (H0015-18-S) Ratio 11.5 : 1
- 19T Pulley (H0015-19-S) Ratio 10.9 : 1
- 20T Pulley (H0015-20-S) Ratio 10.3 : 1
- 21T Pulley (H0015-21-S) Ratio 9.8 : 1
- 22T Pulley (H0015-22-S) Ratio 9.4 : 1
- 23T Pulley (H0015-23-S) Ratio 9.0 : 1
- 24T Pulley (H0015-24-S) Ratio 8.6 : 1
- 25T Pulley (H0015-25-S) Ratio 8.3 : 1
- 26T Pulley (H0015-26-S) Ratio 8.0 : 1
Tulis ulasan
SAB Goblin Kraken 580 Yellow/Blue w. Main & Tail Blades (SG580)
- Merek: SAB
- Kode Produk: SG580-KIT
- Ketersediaan: Out Of Stock
- IDR 12.523.500
