Product Description:
·3215/920KV motor specially developed for 380/X3/470 helicopters
·Sourcing of international standard aerospace aluminium raw materials
·High precision CNC machined in Japan (precision 0.001mm)
·Combined with imported German tungsten steel tools to ensure machining accuracy
·Each finished or semi-finished product is inspected to strict quality standards (0.01mm)
·Lightweight, high strength, heat dissipation on the new design concept of the 3215/920KV
·Rotor adjusted to optimum (within 0.05g) using a high precision dynamic balancer
·Using imported bearings and Fully hand wound


Product Specifications:

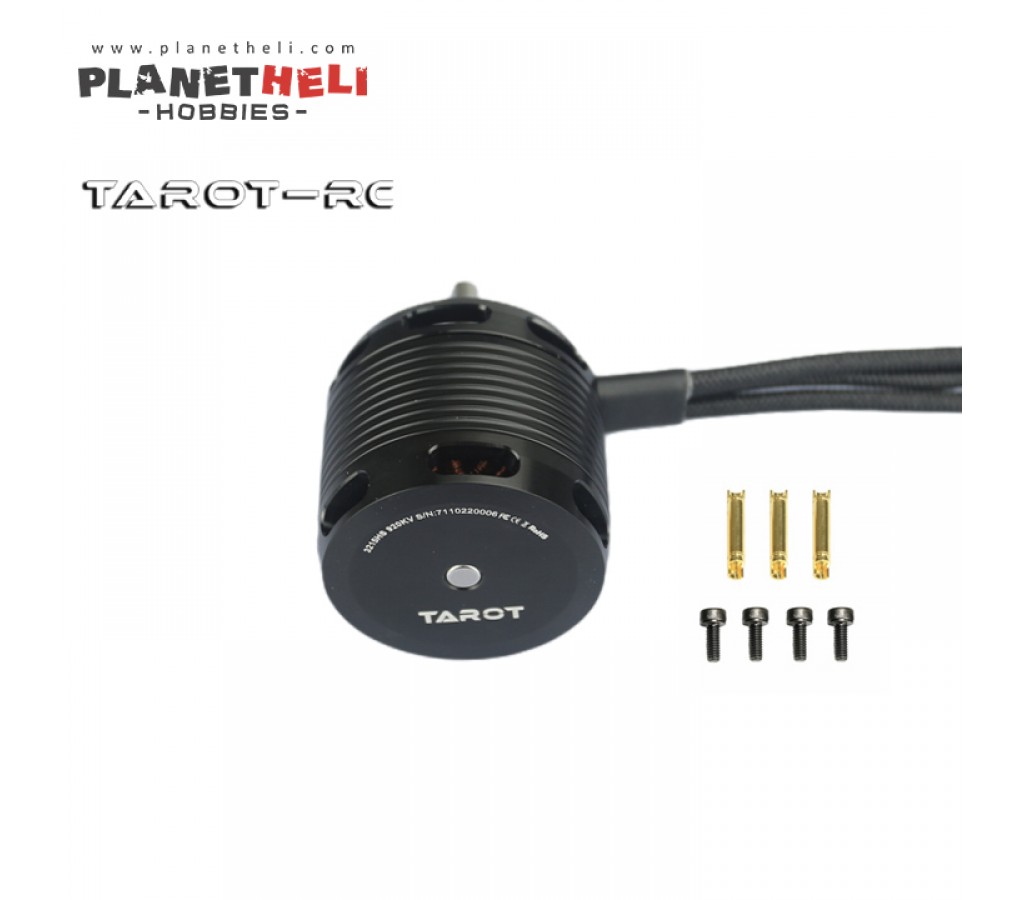

3215/920KV Motor×1
M3*12 cup head screws×4
M4.0 banana head pair×3


Specification

Value

Size / Model

3215HS

Motor KV

920KV

For Heli Size (Diameter)

380 /420

Stator Width

32mm

Stator Height

15mm

LiPo Cells (S)

6S

Motor Configuration

10-Pole

Wire Thickness

0.38mm

No-Load Current

1.4A

Continuous Current

42A

Maximum Current

50A

Continuous Power

932W

Maximum Power

1100W

Internal Resistance

45mΩ

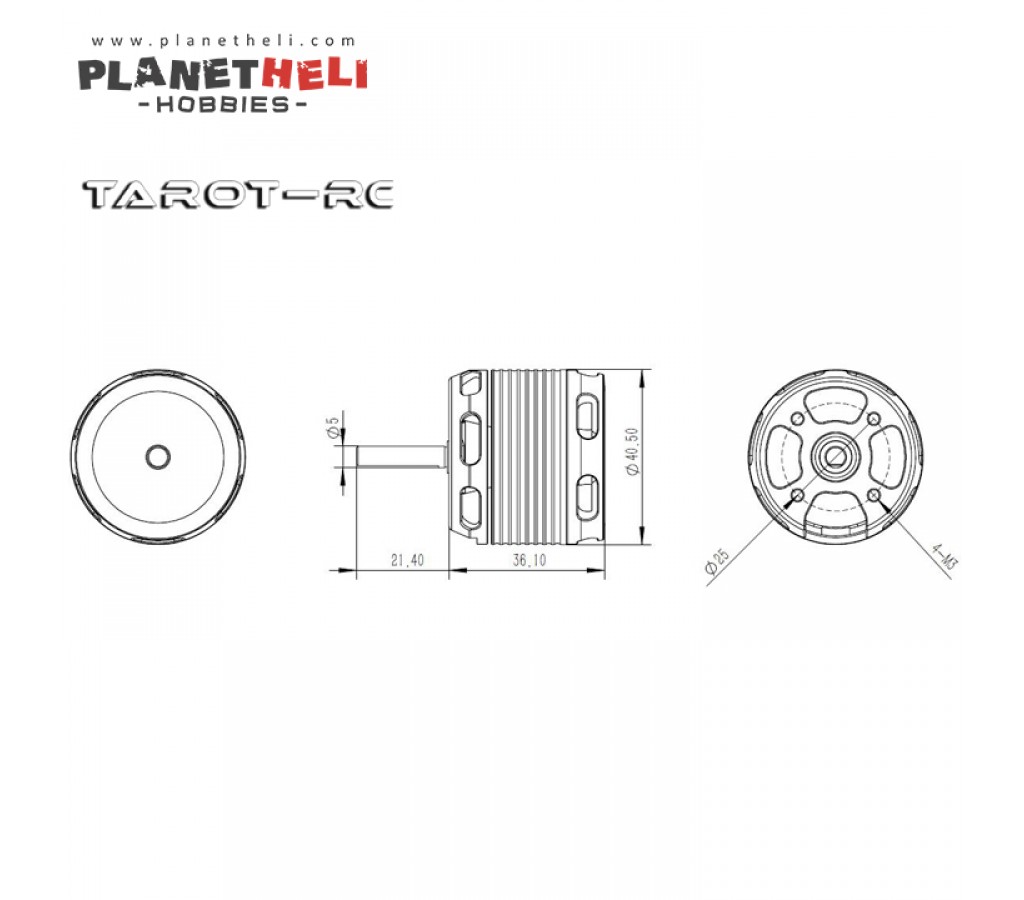

Shaft Diameter (External)

5mm

Shaft Length (External)

21mm

Motor Length

36mm

Motor Diameter

40.5mm

Motor Weight

140g

Tulis ulasan

Catatan: HTML tidak diterjemahkan!
Buruk Baik

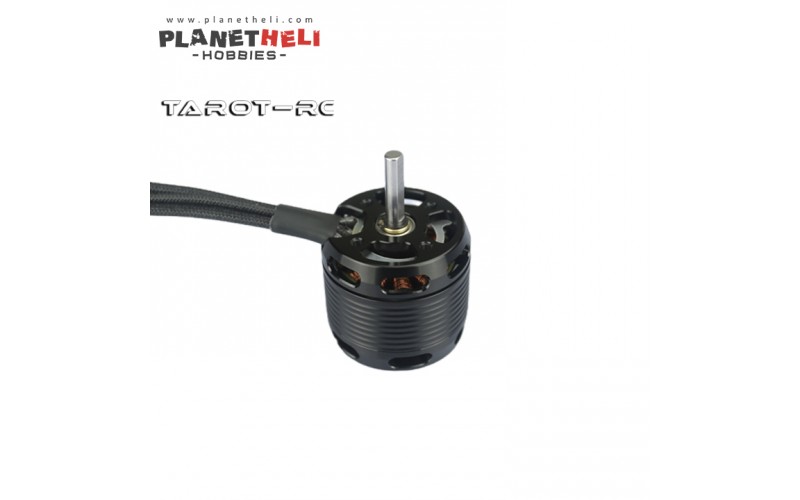

Tarot RC TL380A25 3215 920KV Motor 380 420 Series Helicopter Motor

  • Merek: Tarot RC
  • Kode Produk: TL380A25
  • Ketersediaan: 2
  • IDR 1.575.000
