Features

High-Performance MCU: Powered by the STM32 H7 chip for maximum processing power.

Touchscreen Display: 5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail.

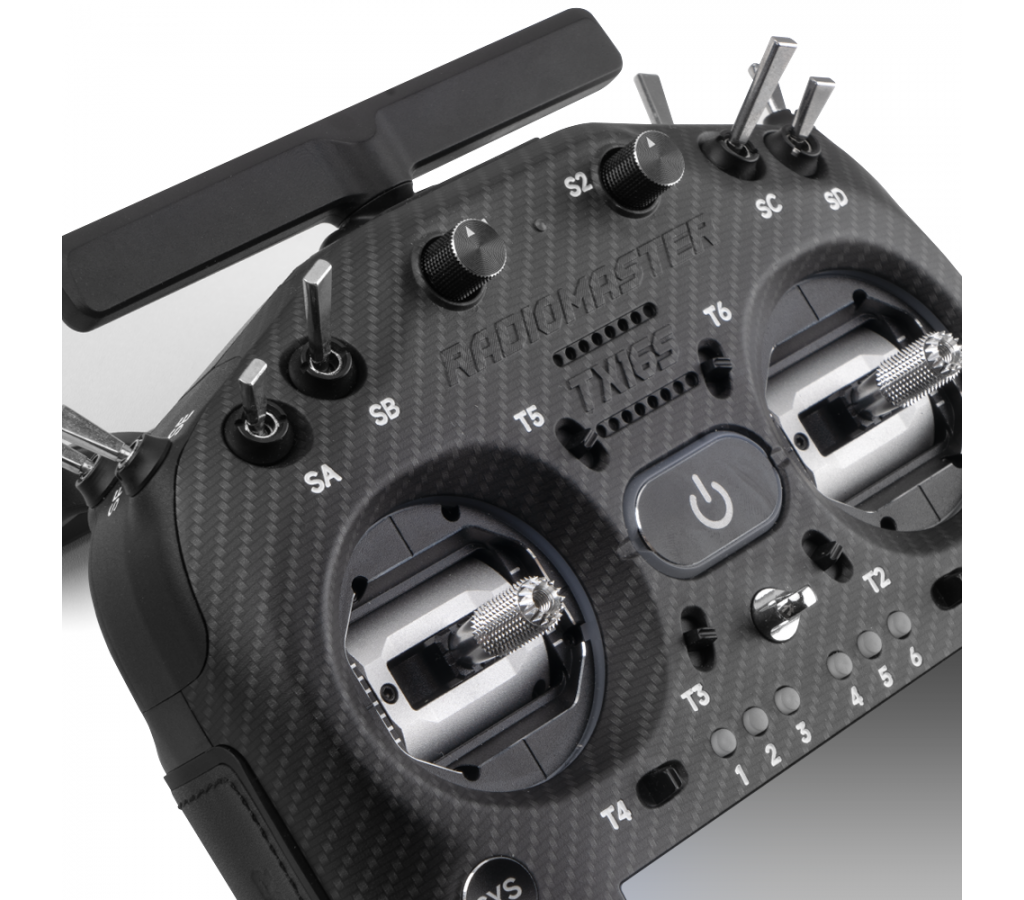

Precision Gimbals: AG02 Quad-Bearing, CNC Aluminum Hall sensor gimbals (Model dependent).

Internal RF Module: Dual-band Gemini 2.4GHz and Sub-G 900MHz

Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for better battery life.

Powerful Cooling System: Low-noise, high-output fans and an aluminum heat sink keep your radio cool, even on the hottest days.

Digital audio: Greater sound quality and reduced interference.

Dual Foldable Antennas: Compact and easy to store without compromising signal strength.

Built-in Microphone: For future feature expansion.

Automatic back light adjustment: Makes the screen easier to read indoors and out.

Built-in Motion Sensor: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.

Storage: Built-in flash memory with external SD card support. Storage:  Built-in flash memory with external SD card support.

Removable shoulder switch panels: Customize your setup with modular switch panels.

Specification

Item: TX16S MK3 MAX Radio Controller

Color: Black / Red / Blue / Gold

Voltage Range: 6.6 - 8.4V DC

Working Current: 1.10A (at max RF output power)

Radio Firmware: EdgeTX (require 3.0.0 or higher)

Built-in RF Module: ExpressLRS 2 x LR1121

Frequency: ISM 2.4GHz and Sub-G 900MHz

Number of Channels: Up to 16ch

Gimbal: AG02 CNC Hall sensor gimbals

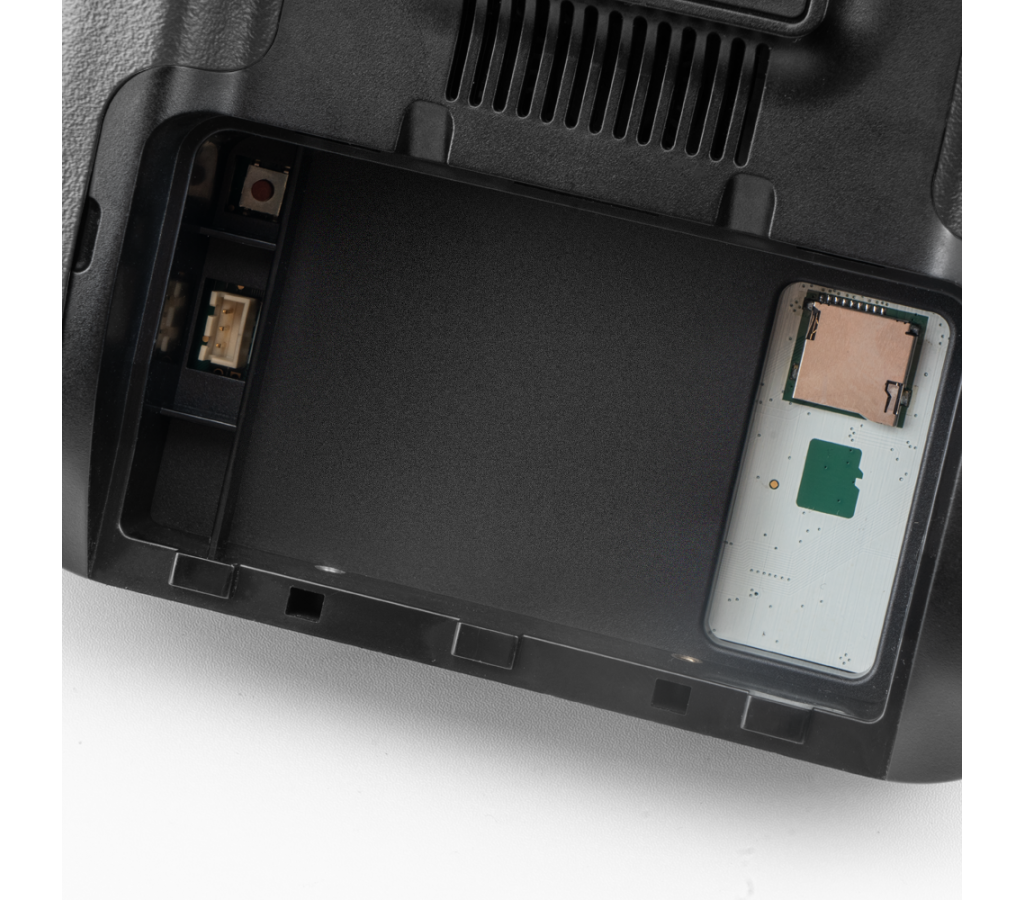

MicroSD Card Slot: Yes (card not included)

Built-in Flash: Yes

Display: 5-inch IPS touchscreen (800 X 480 resolution)

Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included)

Upgrade Method: USB / EdgeTX Companion PC software

Module Bay: JR-compatible module bay for additional modules

Dimensions: 200*178*88mm

Weight: 864g  (without battery)
