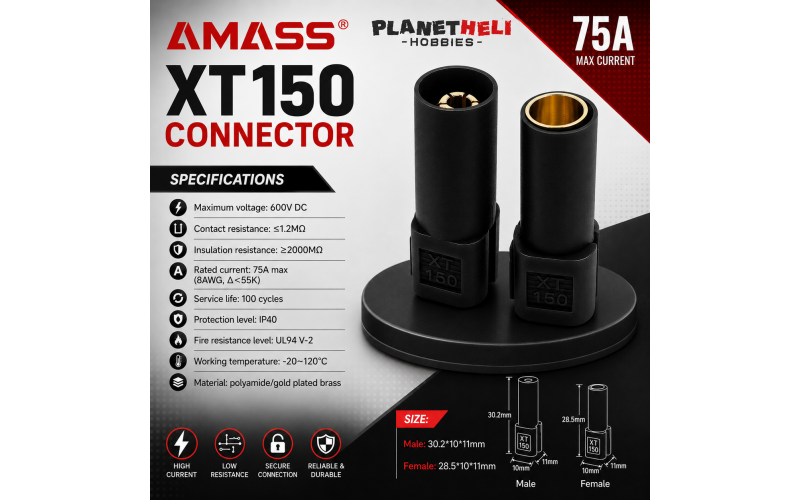

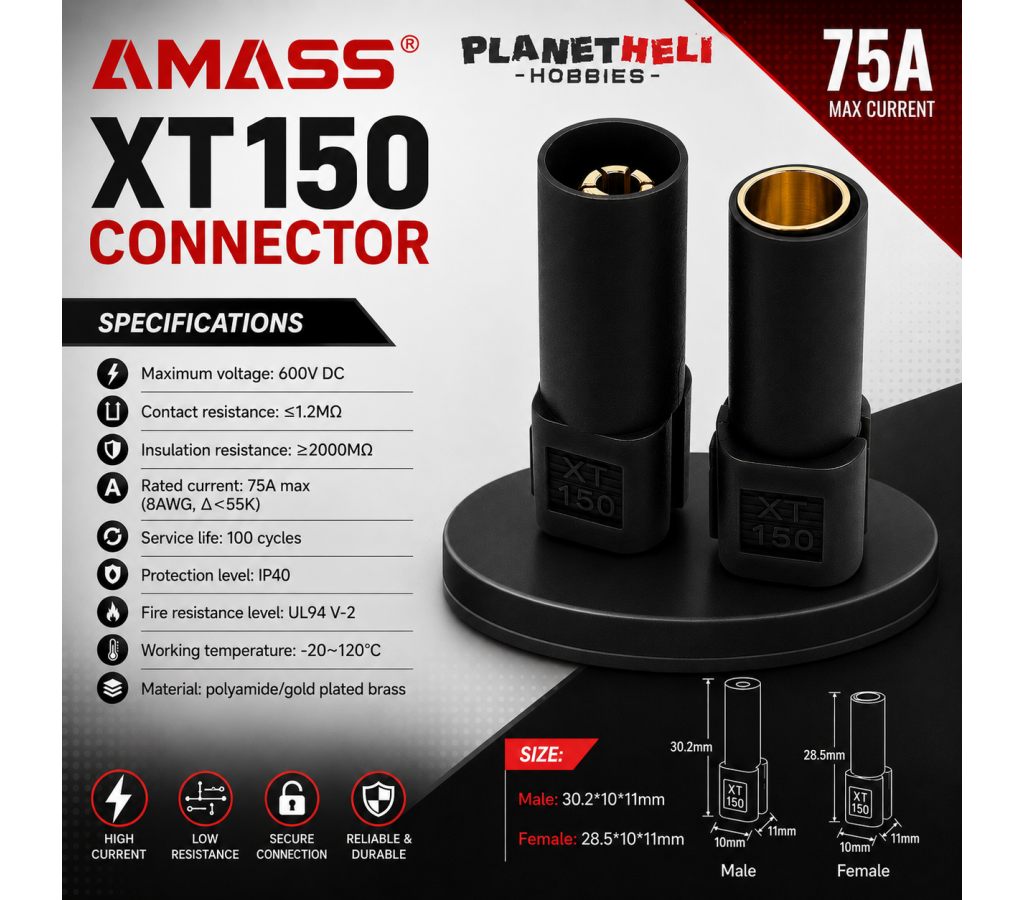

AMASS XT150 Male Female Connector pair

SPECIFICATIONS

• Maximum voltage: 600V DC
• Contact resistance: ≤1.2MΩ
• Insulation resistance: ≥2000MΩ
• Rated current: 75A max (8AWG, Δ＜55K)
• Service life: 100 cycles
• Protection level: IP40
• Fire resistance level: UL94 V-2
• Working temperature: -20~120℃
• Material: polyamide/gold plated brass
• Size:

  • Male: 30.2*10*11mm
  • Female: 28.5*10*11mm

PACKAGE

• 1 x Amass XT150 Male+Female connectors pair
